KBD-1010-RNV

4-axis IP keyboard for PTZ conference cameras
€1,595.00 HT
€1,914.00 TTC
Quantity
done 1 week

Product Reinsurance

Solutions expert

Solutions expert

Secure payment

Secure payment

Direct line

Direct line

Description

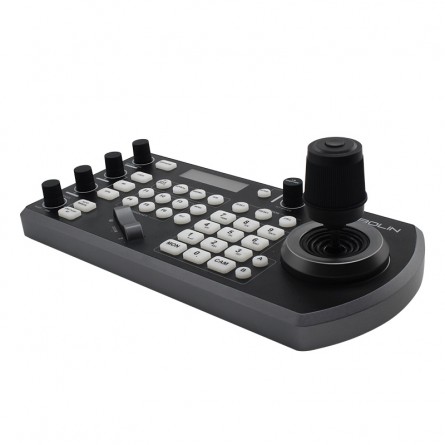

LCM-KEYBOARD is a compact IP keyboard for controlling PTZ IP conference cameras working on VISCA over IP and ONVIF protocols through a LAN network. It has been specially developed for perfect compatibility with PTZ LITECAM cameras. With a web server and a unique IP address, it is very easy to configure to integrate seamlessly into the existing network. Its very precise and handy 4D joystick offers a smooth and pleasant user experience and gives access to all the main camera control functions such as PAN, Tilt, Zoom, Focus,.... In addition to the joystick, a second button allows you to control the zoom for more reactivity. Four quick access buttons allow you to select cameras with a single click and it is possible to adjust the horizontal and vertical rotation speeds of the cameras via rotary knobs. All operations are displayed on the blue LCD screen at the top of the keyboard. Both elegant and robust, LCM-KEYBOARD integrates perfectly into the conference environment for controlling PTZ cameras over IP.

  • VISCA over IP and ONVIF compatible
  • Fluid 4D Joystick
  • Variable speed for pan and tilt control via rotary knobs
  • OLED display for operation control
  • Direct access to presets via buttons
  • Elegant compact design
  • Fully compatible with LITECAM cameras
Data sheet
Other ports
Outputs
RS422RS232IP RJ-45USB 2.0
Protocole
VISCA, ONVIF2.4
Control
4 Axes (right/left, up/down, Zoom in/out, Close/remote focus)
Power supply
12 VDC
Consumption
0.6 W
Dimensions
320 x 177 x 115.5 mm
Weight
0.9 Kg
Fields of applications
  • Security
  • Education
  • Live Events
  • Culture
  • Corporate
  • Broadcast and TV
