VP-QV41H

Multiviewer processor 4 HDMI sources 4K/60 4:4:4

€2,350.00 HT
€2,350.00 TTC
Quantity
done In stock

Product Reinsurance

Solutions expert

Solutions expert

Secure payment

Secure payment

Direct line

Direct line

Description

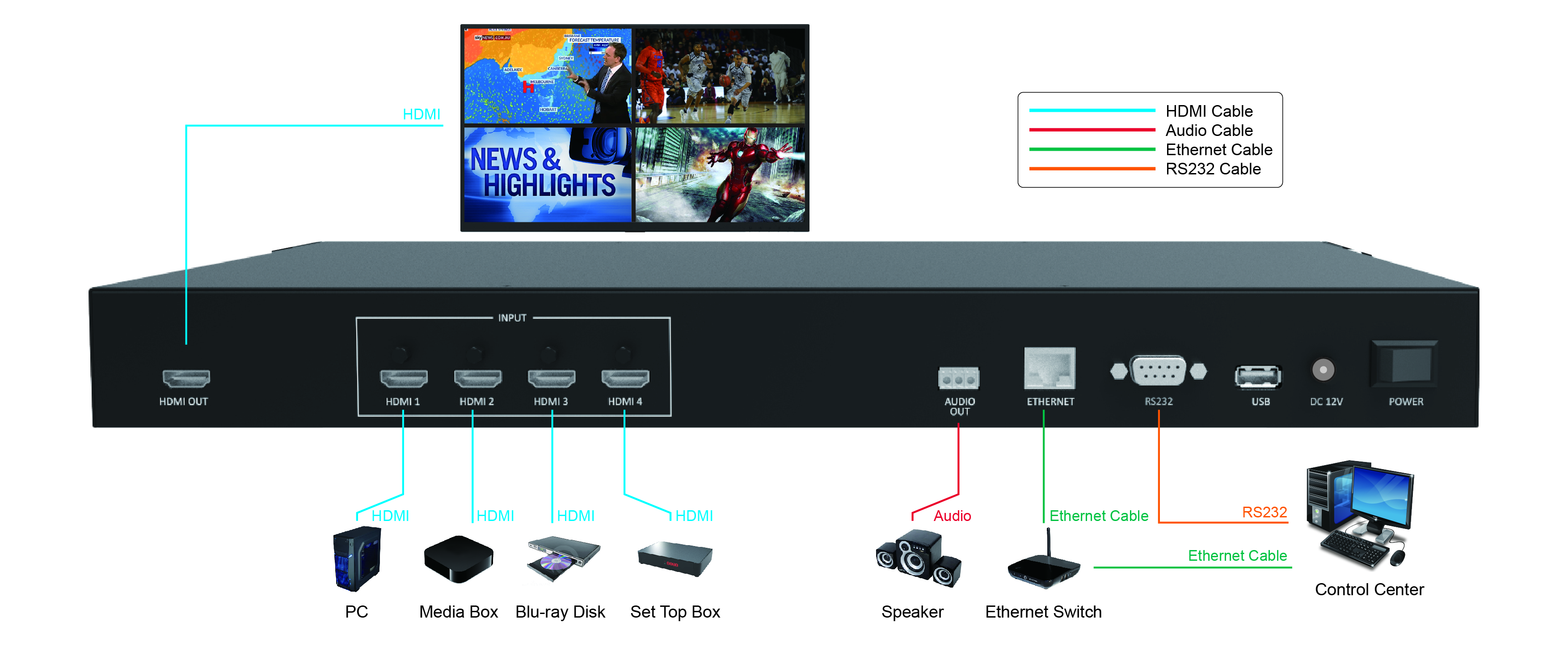

VP-QV41H is a video processor allowing to display 4 HDMI sources up to 4K/60 on a single screen. They are rendered on the 4K/60 4:4:4 compatible HDMI 2.0 output. It is also possible to manage the audio from the sources, to select it and play it through the HDMI output or through the analog audio output (de-embedded audio). It is able to upscale or downscale any video source to render it in the desired way on the projector or the output screen. An auto-calibration system at the input allows a quick configuration of the device. In terms of display, it can support up to 14 different layouts, including 6 fixed and 8 customizable presets. The VP-QV41H is a high-end processor for video installations requiring multi-display of UHD video sources, such as broadcast control rooms, security PCs, conference rooms, conventions, ...

  • Allows up to 4 HDMI 4K sources to be displayed on a single 4K display
  • Supports 4K/60 4:4:4 inputs and outputs
  • Supports PIP, POP and multiview layouts
  • Supports up to 14 different layouts, including 6 basic fixed and 8 configurable presets
  • Supports 90° left and right rotation
  • Handles audio in and out
  • Control via RS-232, IP, Web App, IR and front panel buttons
  • Delivered with IR remote and 19'' rackmount kit

Data sheet
Inputs
4x HDMI 2.0 f.
Other ports
1x USB for firmware update
1x RJ-45 for control
Outputs
1x HDMI 2.0 f.
1x Analog audio f. (screw type)
Managed Resolutions
3840 x 2160/60/50/30
1920x1080/60
1280x720/60
720x480/60
Bandwidth
18 Gbps
Control
IR, RS-232, Ethernet, front panel, Web GUI
Power supply
12 V/2A, locking
Consumption
15 W
Dimensions
440.40 x 230 x 45 mm (19", 1U)
Weight
3 Kg
Fields of applications
  • Security
  • Healthcare
  • Defence
  • Broadcast and TV
  • Corporate
  • Live Events
Downloads
